Powder Metallurgy Processes

Consolidation Processes

The most basic conventional powder metallurgy process, press-and-sinter, uses pressure and heat to form precision metal parts and shapes. Powder is squeezed (at room temperature) automatically in a rigid precision die at up to 50 tons per square inch into an engineered shape like a gear. Think of 50 compact cars stacked vertically and you have the pressure it takes to press the powder automatically in a mechanical or hydraulic compacting press. After the mass of powder is squeezed into a shape and ejected from the press, it is fed slowly through a special high-temperature controlled atmosphere furnace to bond the particles together. They are metallurgically fused without melting, a phenomenon called “sintering”.

Other processes are also used to consolidate powders into finished shapes such as cold or hot isostatic pressing, direct powder rolling, forging, metal injection molding and gravity sintering. In contrast to other metal forming techniques, PM parts are shaped directly from powders while castings are formed from metal that must be melted, and wrought parts are shaped by deformation of hot or cold metal, or by machining. The latest powder metallurgy technology to enter the market is metal additive manufacturing (also known as metal 3D printing).

Powder Metallurgy Consolidation Process vs. Other Metal-Forming Processes

There are advantages of using powder metallurgy over other metal-forming processes; however, it's important to understand that there are various advantages to using one process over another. If you are seeking to manufacturing a new component, or to evaluate whether or not a current component can be redesigned using powder metallurgy, we urge you to find a fabricator to discuss the process as early as possible. Working with a PM component fabricator early in the design process can lead to added benefits.

Visit PickPM.com to find a compatible powder metallurgy fabricator from among the member companies of the Metal Powder Industries Federation.

Metal Injection Molding Automated Machinery

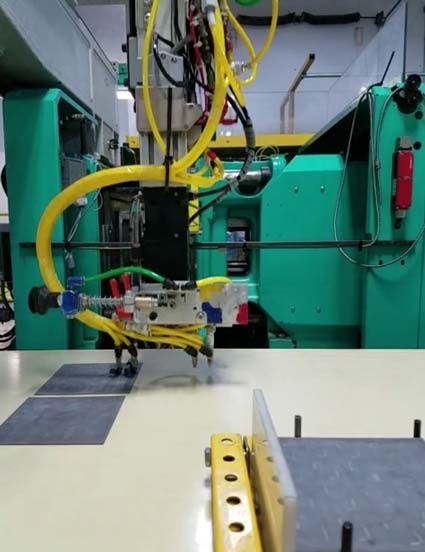

Figure 1. "Green" components are being lined up by an automated system for sintering.
